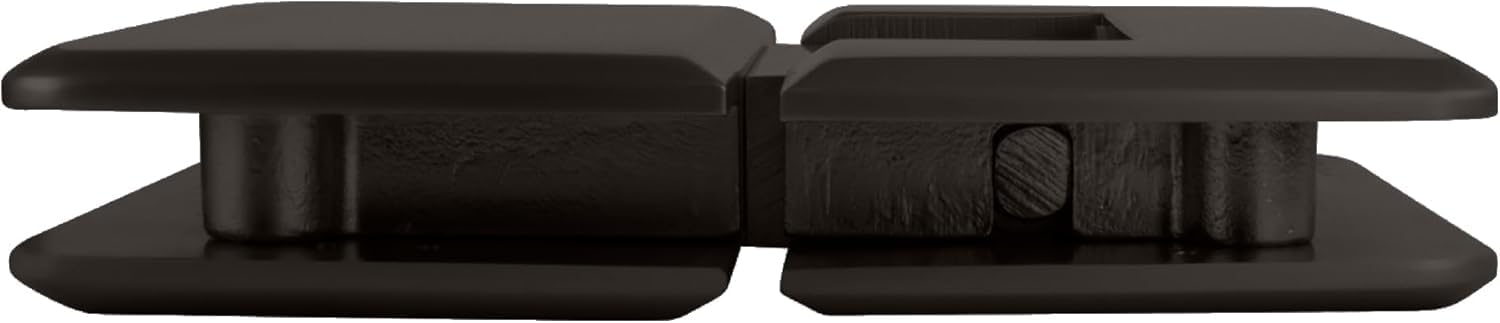

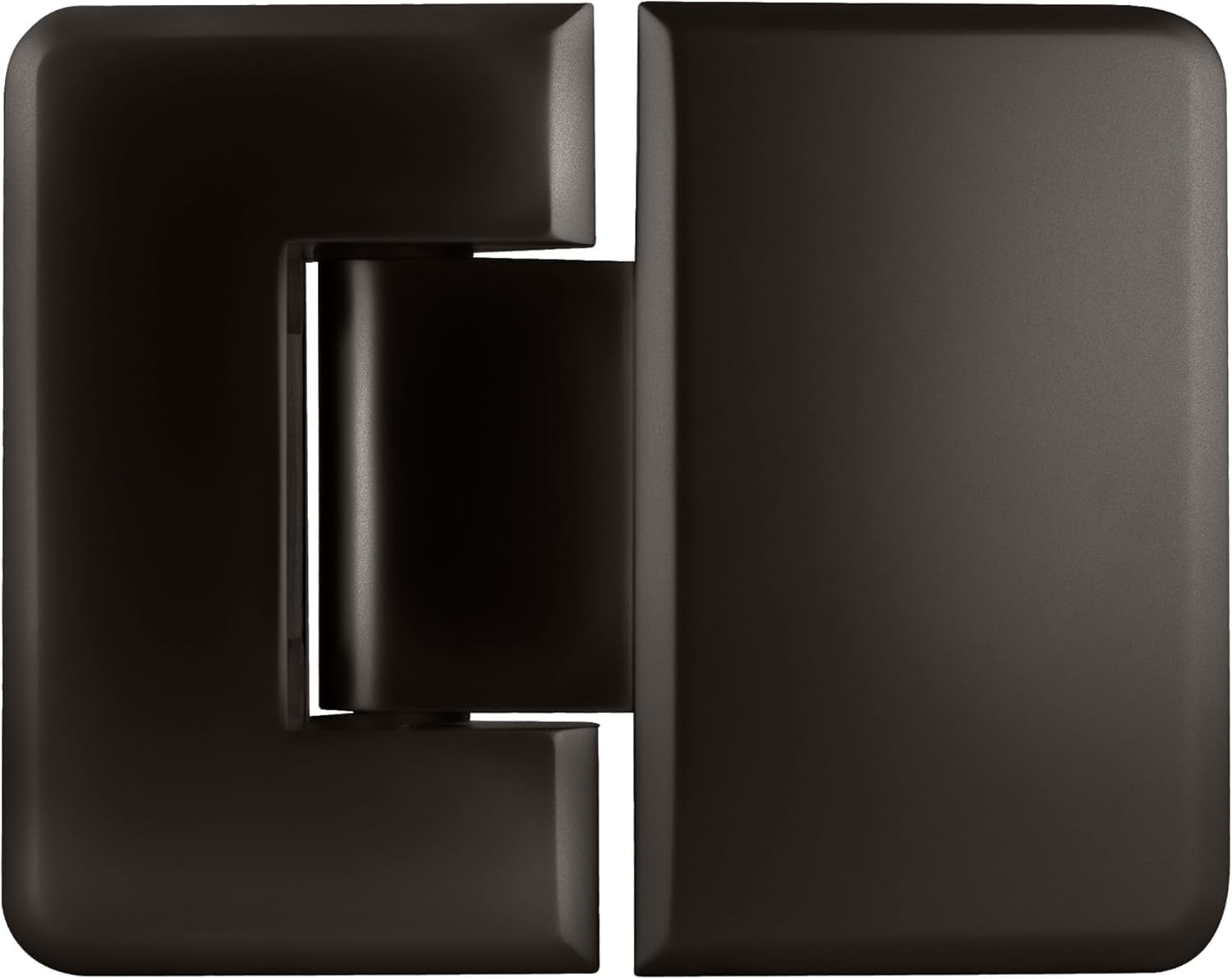

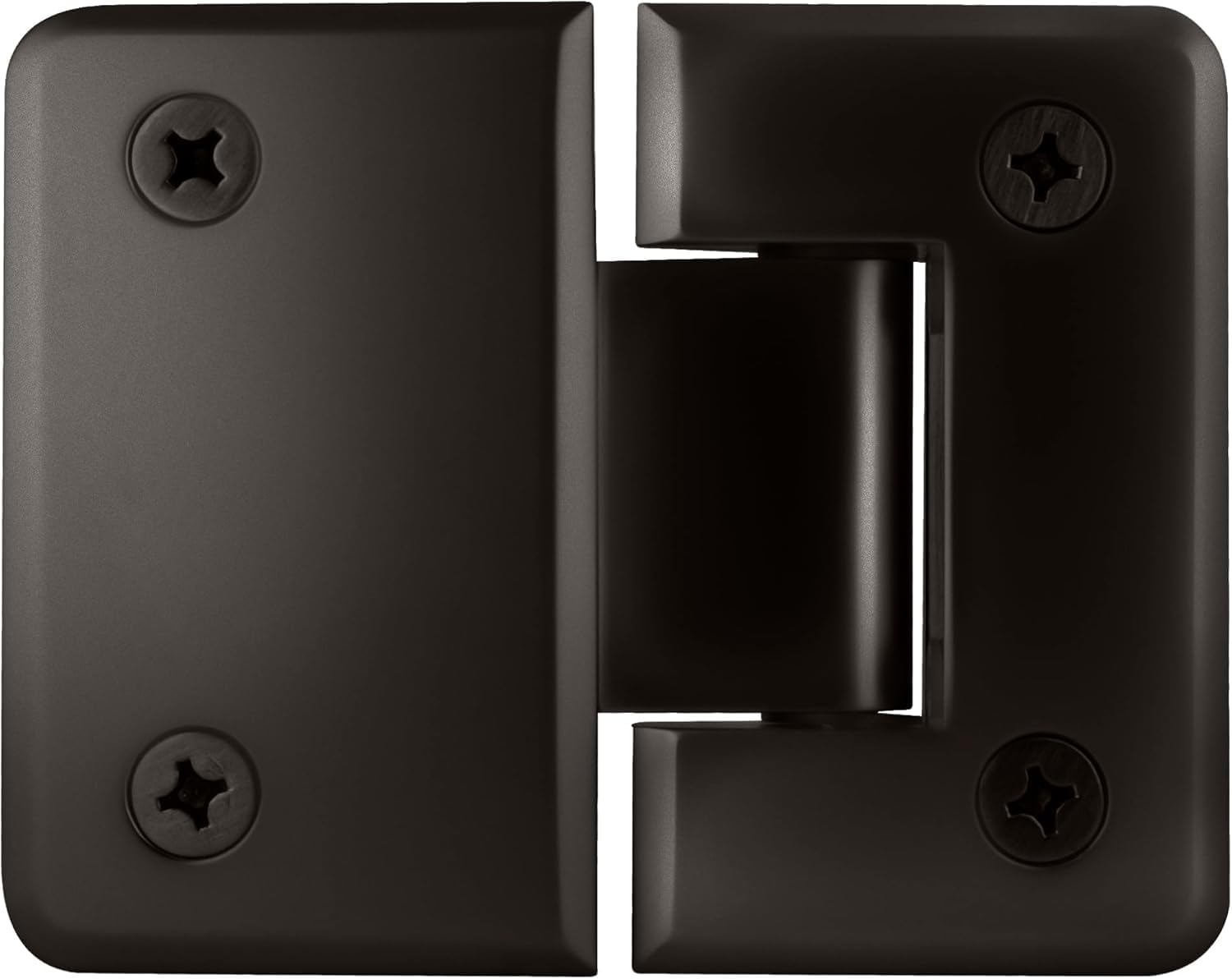

CRL Pinnacle 180 Series Oil Rub Bronze 180º Glass-to-Glass Standard Hinge

Self-Centering with Reversible 5º Pivot Pin Available in Several Beautiful Finishes 180 Degree Glass-to-Glass Standard Model The CRL Pinnacle Series of professional hinges is able to accommodate 3/8 to 1/2 inch (10 to 12 millimeter) glass. A variety of 10 styles, including Wall Mount and Glass-to-Glass types, gives design flexibility. They are made of solid brass with all moving parts (pins and springs) in stainless steel. Pinnacle Hinges are self-centering, and contain a Reversible 5º Pivot Pin. In addition, Custom Pivot Pins are available to accommodate "off angle" installations. Color: Oil Rub Bronze Minimum Order: 1 Each Standard Reversible Pivot Pin: Each Pinnacle Hinge contains a Reversible Pivot Pin. One side of the Pin is marked 90º. The opposite side is marked 85º. Standard Pinnacle Hinges come with the 90º side activated. Offset Models come with the Pin pre-set to 85º (5º tighter closure into shower interior). The Pin can be rotated (not flipped upside down) to activate the other side. Specifications: Glass Thickness: 3/8 to 1/2 inch (12 millimeter) Tempered Safety Glass Construction: Solid Brass Hinge Swings: 90º in and 90º out Closing Type: Self-Centering when within 15º of closed position Cut-Out Required Includes: One Hinge, Gaskets, Screws and Template

• Self-Centering with Reversible 5º Pivot Pin
• Available in Several Beautiful Finishes
• 180 Degree Glass-to-Glass Standard Model
• Color: Oil Rub Bronze
• Minimum Order: 1 Each
